Name: Purchase Westcoast Saw's Aluminum 500i Clutch Cover Online
Brand: Westcoast Saw™
SKU: 100-1004
Price: 159.0 USD
Availability: InStock
Rating: 4.5 (2 reviews)

$159.00

Quantity

Frequently Asked Questions

Description

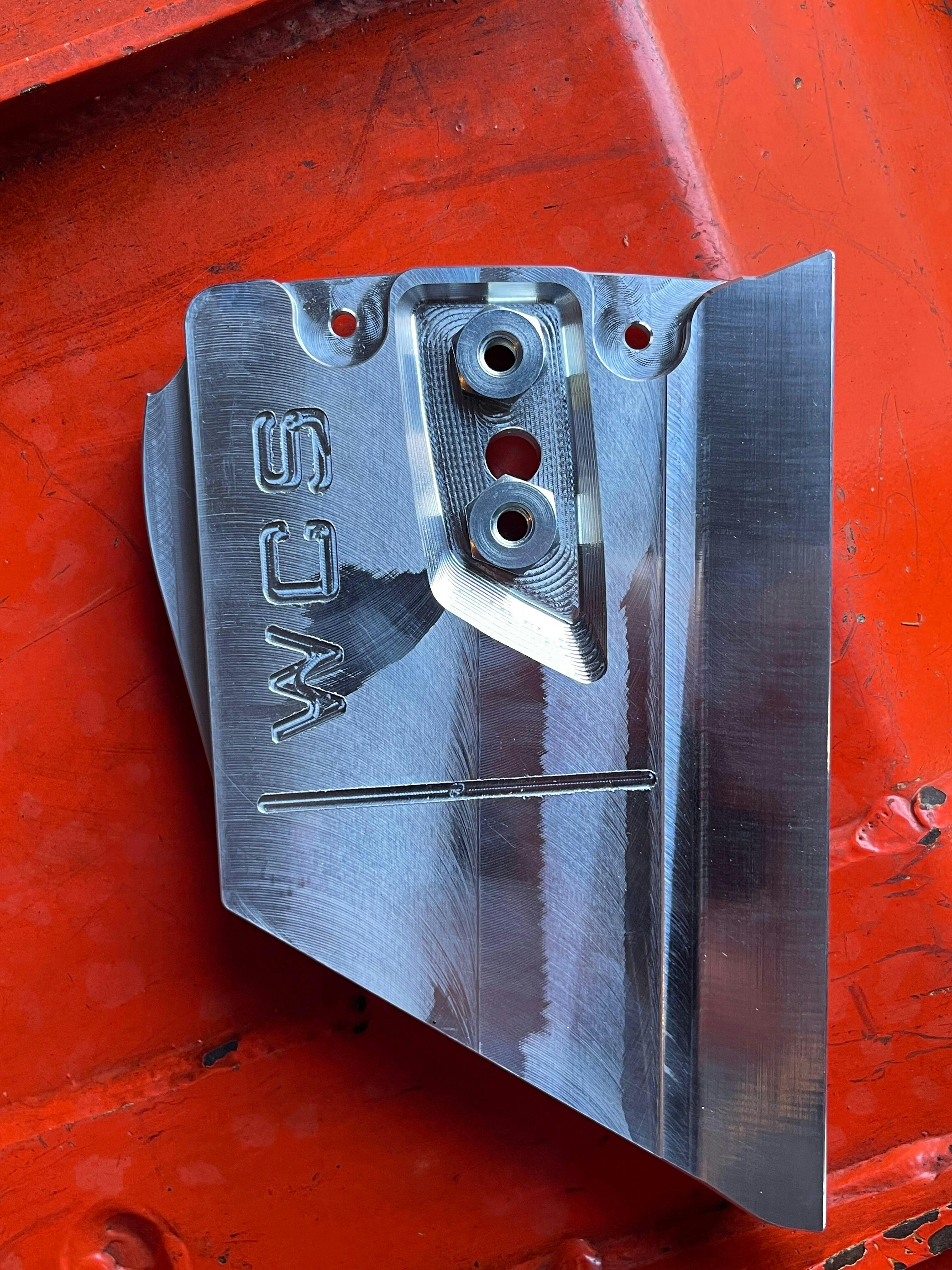

Our cover provides superior strength, durability, and functionality over the stock cover.

Made of 6061-T6 Aircraft Aluminum
Stronger than factory cover
Larger for better chip management
Extra large and longer lasting polyurethane chip deflector
Wider for ease of walking chain back on without removing cover
Field tested to ensure quality
Bigger in size than the stock cover makes it slightly heavier
Includes bar nuts, chain sliders and one chip deflector
Made in the USA

READ BELOW FOR IMPORTANT FIT NOTES

The recommended torque range for the bar nuts is 20-25 ft-lbs. This will ensure that the bar is clamped properly. If not done correctly, this can cause damage to your cover.

Clutch Covers cannot be retrofitted from standard bar nuts to captive, and vice versa. They are uniquely manufactured.

All Clutch Covers fit the 3, 4 & 5 point felling dogs with the follow exception.

Part 100-1003 (when used on an 046/460/036/034) - Only fits 3-point dogs
Part 100-1004 (261/msa300/362/400) - Only fits 3-point dogs

Our 261/msa300/362/400 Clutch Cover fits the full wrap 362 (R model) with Stihl part number 1140 021 1105.

Older 261 models may need Stihl part number 1141 021 1130 to fit.

If you plan to run a 404 chain, you may need to shave 0.015 (inch) off the chain slider to allow for the additional width.

INSTALLATION TIP

Felling dog bolts need to be installed from the inside of the cover, facing out so that the nut is on the outside of the felling dog. After this, put the cover flat on a table and make sure that you pound the chain sliders down until it stops against the cover - as far as it will go. The clearances are super tight so we get maximum wear out of our chain sliders. Once they are down tight your chain will spin freely.

Ⓓ CANADA DESIGN REG. NO. 210518, WESTCOAST SAW, LLC

Stihl® is a registered trademark of Stihl® Incorporated and is used only to describe their products.

[{"id":43362067644646,"title":"261\/msa300\/362\/400 (Captive Bar Nuts)","option1":"261\/msa300\/362\/400 (Captive Bar Nuts)","option2":null,"option3":null,"sku":"100-1004","requires_shipping":true,"taxable":true,"featured_image":{"id":38373313446118,"product_id":7451909357798,"position":6,"created_at":"2022-09-15T10:19:15-07:00","updated_at":"2022-09-15T10:19:15-07:00","alt":null,"width":768,"height":1024,"src":"\/\/westcoastsaw.com\/cdn\/shop\/products\/Clutch_Cover_261_362_400.jpg?v=1663262355","variant_ids":[43362067644646]},"available":true,"name":"Clutch Cover | For Select Stihl Saws - 261\/msa300\/362\/400 (Captive Bar Nuts)","public_title":"261\/msa300\/362\/400 (Captive Bar Nuts)","options":["261\/msa300\/362\/400 (Captive Bar Nuts)"],"price":15900,"weight":510,"compare_at_price":0,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":30956316000486,"position":7,"preview_image":{"aspect_ratio":0.75,"height":1024,"width":768,"src":"\/\/westcoastsaw.com\/cdn\/shop\/products\/Clutch_Cover_261_362_400.jpg?v=1663262355"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43443155992806,"title":"462\/500i (Captive Bar Nuts)","option1":"462\/500i (Captive Bar Nuts)","option2":null,"option3":null,"sku":"100-1005","requires_shipping":true,"taxable":true,"featured_image":{"id":38417920196838,"product_id":7451909357798,"position":7,"created_at":"2022-09-22T13:41:54-07:00","updated_at":"2022-09-22T13:41:54-07:00","alt":null,"width":418,"height":626,"src":"\/\/westcoastsaw.com\/cdn\/shop\/products\/Clutch_Cover_261_362_400_with_Nuts.jpg?v=1663879314","variant_ids":[43443155992806]},"available":true,"name":"Clutch Cover | For Select Stihl Saws - 462\/500i (Captive Bar Nuts)","public_title":"462\/500i (Captive Bar Nuts)","options":["462\/500i (Captive Bar Nuts)"],"price":15900,"weight":595,"compare_at_price":0,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":31001983713510,"position":8,"preview_image":{"aspect_ratio":0.668,"height":626,"width":418,"src":"\/\/westcoastsaw.com\/cdn\/shop\/products\/Clutch_Cover_261_362_400_with_Nuts.jpg?v=1663879314"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42781994451174,"title":"462\/500i (Standard Bar Nuts)","option1":"462\/500i (Standard Bar Nuts)","option2":null,"option3":null,"sku":"100-1000","requires_shipping":true,"taxable":true,"featured_image":{"id":39767305191654,"product_id":7451909357798,"position":10,"created_at":"2023-08-18T14:15:56-07:00","updated_at":"2023-08-18T14:15:56-07:00","alt":null,"width":1182,"height":1773,"src":"\/\/westcoastsaw.com\/cdn\/shop\/products\/ClutchCoverMainImage2.jpg?v=1692393356","variant_ids":[42781994451174]},"available":true,"name":"Clutch Cover | For Select Stihl Saws - 462\/500i (Standard Bar Nuts)","public_title":"462\/500i (Standard Bar Nuts)","options":["462\/500i (Standard Bar Nuts)"],"price":15900,"weight":567,"compare_at_price":0,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":32372153549030,"position":11,"preview_image":{"aspect_ratio":0.667,"height":1773,"width":1182,"src":"\/\/westcoastsaw.com\/cdn\/shop\/products\/ClutchCoverMainImage2.jpg?v=1692393356"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42842230128870,"title":"660\/650\/066\/064\/046\/460\/461\/440\/044\/036\/034\/360 (Standard Nuts)","option1":"660\/650\/066\/064\/046\/460\/461\/440\/044\/036\/034\/360 (Standard Nuts)","option2":null,"option3":null,"sku":"100-1003","requires_shipping":true,"taxable":true,"featured_image":{"id":37469447323878,"product_id":7451909357798,"position":3,"created_at":"2022-04-28T18:09:29-07:00","updated_at":"2023-12-07T14:22:16-08:00","alt":null,"width":2981,"height":4472,"src":"\/\/westcoastsaw.com\/cdn\/shop\/products\/Clutch_Cover_461_Outside_100-1003.jpg?v=1701987736","variant_ids":[42842230128870]},"available":true,"name":"Clutch Cover | For Select Stihl Saws - 660\/650\/066\/064\/046\/460\/461\/440\/044\/036\/034\/360 (Standard Nuts)","public_title":"660\/650\/066\/064\/046\/460\/461\/440\/044\/036\/034\/360 (Standard Nuts)","options":["660\/650\/066\/064\/046\/460\/461\/440\/044\/036\/034\/360 (Standard Nuts)"],"price":15900,"weight":567,"compare_at_price":0,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":30033931403494,"position":3,"preview_image":{"aspect_ratio":0.667,"height":4472,"width":2981,"src":"\/\/westcoastsaw.com\/cdn\/shop\/products\/Clutch_Cover_461_Outside_100-1003.jpg?v=1701987736"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43712298582246,"title":"661 (Captive Bar Nuts)","option1":"661 (Captive Bar Nuts)","option2":null,"option3":null,"sku":"100-1007","requires_shipping":true,"taxable":true,"featured_image":{"id":39427725590758,"product_id":7451909357798,"position":9,"created_at":"2023-04-21T13:36:47-07:00","updated_at":"2023-04-21T13:36:47-07:00","alt":null,"width":2981,"height":4472,"src":"\/\/westcoastsaw.com\/cdn\/shop\/products\/ClutchCover661CaptiveFront.jpg?v=1682109407","variant_ids":[43712298582246]},"available":true,"name":"Clutch Cover | For Select Stihl Saws - 661 (Captive Bar Nuts)","public_title":"661 (Captive Bar Nuts)","options":["661 (Captive Bar Nuts)"],"price":15900,"weight":595,"compare_at_price":0,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":32026120323302,"position":10,"preview_image":{"aspect_ratio":0.667,"height":4472,"width":2981,"src":"\/\/westcoastsaw.com\/cdn\/shop\/products\/ClutchCover661CaptiveFront.jpg?v=1682109407"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43898188923110,"title":"661 (Standard Bar Nuts)","option1":"661 (Standard Bar Nuts)","option2":null,"option3":null,"sku":"100-1002","requires_shipping":true,"taxable":true,"featured_image":{"id":39827937034470,"product_id":7451909357798,"position":11,"created_at":"2023-09-14T12:28:58-07:00","updated_at":"2023-09-14T12:28:58-07:00","alt":null,"width":2981,"height":4472,"src":"\/\/westcoastsaw.com\/cdn\/shop\/products\/ClutchCover661Outside.jpg?v=1694719738","variant_ids":[43898188923110]},"available":true,"name":"Clutch Cover | For Select Stihl Saws - 661 (Standard Bar Nuts)","public_title":"661 (Standard Bar Nuts)","options":["661 (Standard Bar Nuts)"],"price":15900,"weight":595,"compare_at_price":0,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":32434056036582,"position":12,"preview_image":{"aspect_ratio":0.667,"height":4472,"width":2981,"src":"\/\/westcoastsaw.com\/cdn\/shop\/products\/ClutchCover661Outside.jpg?v=1694719738"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Awesome

To start, pictures don’t do it justice. Once you put it on your saw it looks absolutely bad ass. Very well made and high quality. Fits the 462 like a glove. I always had problems with chips getting clogged in the stock clutch cover even with the stihl “larger” clutch cover. Not only are clogged chips annoying, but it causes excess heat and could hinder the oil from flowing in the bar. No longer do chips get clogged and the upgraded chip deflector is way better than the stock one. It’s very durable but flexible rubber that throws the chips straight down and not all over the place. I also recommend the bark box and the 3 point felling dogs to go with the clutch cover.

MS261 Clutch Cover

Perfect swap! Very easy to switch over and install. Looks even better.

Clutch cover

Aluminum cover was great, however it came with the rubber chip deflector, and I ordered a second one, neither one of them worked or stayed in the saw like they should. Will be contacting to see what they will do for me.

Awesome products!

Great quality and made to last
