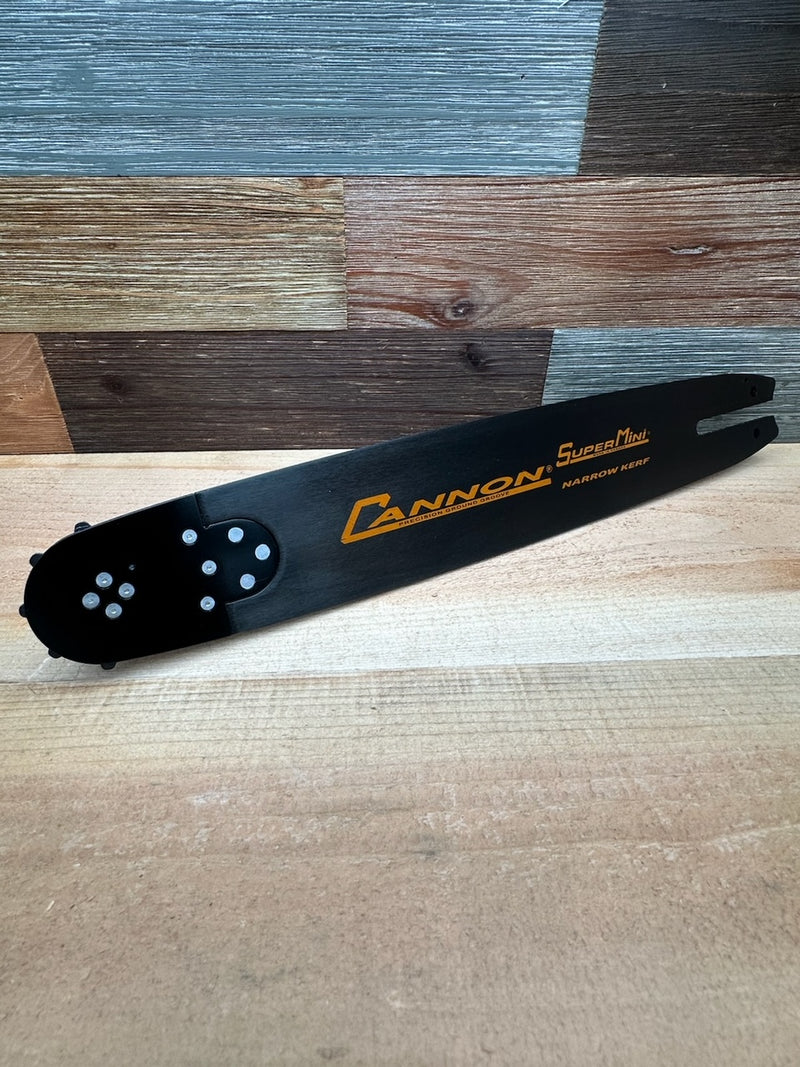

Cannon SuperMini Bar
Part Number:
CSM-S5-14-50-3LM
Don't see the Cannon bar you need? Contact us for custom orders.
Cannon Bars are built for serious work. Made from high-grade steel and crafted for strength and balance, it’s designed to handle tough cuts with ease. The bar’s refined profile delivers more power and smoother performance while helping protect against wear and chain damage. Each one is machined for straight, clean cuts and a true-running chain. With hardened rails and rugged construction that stands up to rebuilds, these bars keep you cutting fast, straight, and dependable—every time you fire up your saw.
Product Specifics:
This is a solid one-piece chainsaw bar, with a slender profile and mini replaceable sprocket
nose (1.75″ tip diameter)
- NOT suitable for use on chainsaws over 60cc or bore cutting
- Designed for bucking, limbing, building, carving, or trimming, making them ideal
for arborists and log-home builders. - Best bar for reduced weight, maneuverability, and precision work
- Features Cannon’s signature flame hardened rails and precision stone honed
groove, accurate to within .003” - Made in Canada from high grade, custom formulated, cold rolled and annealed
steel, that has extra chromium for wear resistance and extra molybdenum for
strength.
Bar Model Fitment Code:
S5 - Stihl (3005) = 009, 010, 011, 012, 017, MS170, MS171, 018, MS180, MS181, 019, MS190, MS191, MS192, MS193, 020, MS200, MS201, 021, 022, MS210, MS211, 023, MS230, MS231, 025, MS250, MS251, 019T, MS190T, MS191T, MS192T, MS193T, 020T, MS200T, MS201T, HT70, HT75, HT100, HT101, HT130, HT131, E140, E160, E180, MSE140, MSE160, MSE180, MSE200
Cannon SuperMini Narrow Kerf, S5 Mount, 16 inches, .050 gauge, 0.370 pitch (3/8 low profile), 55 drive links. For use on saws less than 60cc displacement.
Bar Model Fitment Code:
S5 - Stihl (3005) = 009, 010, 011, 012, 017, MS170, MS171, 018, MS180, MS181, 019, MS190, MS191, MS192, MS193, 020, MS200, MS201, 021, 022, MS210, MS211, 023, MS230, MS231, 025, MS250, MS251, 019T, MS190T, MS191T, MS192T, MS193T, 020T, MS200T, MS201T, HT70, HT75, HT100, HT101, HT130, HT131, E140, E160, E180, MSE140, MSE160, MSE180, MSE200
Cannon SuperMini Narrow Kerf, S5 Mount, 18 inches, .050 gauge, 0.370 pitch (3/8 low profile), 72 drive links. For use on saws less than 60cc displacement.
Bar Model Fitment Code:
S5 - Stihl (3005) = 009, 010, 011, 012, 017, MS170, MS171, 018, MS180, MS181, 019, MS190, MS191, MS192, MS193, 020, MS200, MS201, 021, 022, MS210, MS211, 023, MS230, MS231, 025, MS250, MS251, 019T, MS190T, MS191T, MS192T, MS193T, 020T, MS200T, MS201T, HT70, HT75, HT100, HT101, HT130, HT131, E140, E160, E180, MSE140, MSE160, MSE180, MSE200
Cannon SuperMini Narrow Kerf, S1 Mount, 20 inches, .050 gauge, 0.325 pitch, 81 drive links. For use on saws less than 60cc displacement.
Bar Model Fitment Code:
S1 - Stihl (3003) / Oregon (D025) = 024, 028, 030, 034, 038, 041, 044, 048, MS 291, MS 261, MS 461, MS 460 R, 026, 029, 032, 036, 039, 042, 046, 045, 056, 066, MS 440, MS 390, MS 361, MS 271, MS 640, MS 311, MS 341, MSE 220, 031, 040, E 15, 064, E 220, E 20, MS 661, MS 260, MS 270, MS 280, MS 290, MS 310, MS 340, MS 360, MS 362, MS 380, MS 391, MS 441, MS 460, MS 650, MS 660
Cannon SuperMini Narrow Kerf, S1 Mount, 24 inches, .050 gauge, 0.325 pitch, 91 drive links. For use on saws less than 60cc displacement. Approx cutting length 22"
Bar Model Fitment Code:
S1 - Stihl (3003) / Oregon (D025) = 024, 028, 030, 034, 038, 041, 044, 048, MS 291, MS 261, MS 461, MS 460 R, 026, 029, 032, 036, 039, 042, 046, 045, 056, 066, MS 440, MS 390, MS 361, MS 271, MS 640, MS 311, MS 341, MSE 220, 031, 040, E 15, 064, E 220, E 20, MS 661, MS 260, MS 270, MS 280, MS 290, MS 310, MS 340, MS 360, MS 362, MS 380, MS 391, MS 441, MS 460, MS 650, MS 660
Cannon SuperMini Narrow Kerf, S1 Mount, 28 inches, .050 gauge, 0.325 pitch, 98 drive links. For use on saws less than 60 cc displacement. Approx cutting length 25"
Bar Model Fitment Code:
S1 - Stihl (3003) / Oregon (D025) = 024, 028, 030, 034, 038, 041, 044, 048, MS 291, MS 261, MS 461, MS 460 R, 026, 029, 032, 036, 039, 042, 046, 045, 056, 066, MS 440, MS 390, MS 361, MS 271, MS 640, MS 311, MS 341, MSE 220, 031, 040, E 15, 064, E 220, E 20, MS 661, MS 260, MS 270, MS 280, MS 290, MS 310, MS 340, MS 360, MS 362, MS 380, MS 391, MS 441, MS 460, MS 650, MS 660
Cannon SuperMini Narrow Kerf, S1 Mount, 32 inches, .050 gauge, 0.325 pitch, 115 drive links. For use on saws less than 60cc displacement. Approx cutting length 30"
Bar Model Fitment Code:
S1 - Stihl (3003) / Oregon (D025) = 024, 028, 030, 034, 038, 041, 044, 048, MS 291, MS 261, MS 461, MS 460 R, 026, 029, 032, 036, 039, 042, 046, 045, 056, 066, MS 440, MS 390, MS 361, MS 271, MS 640, MS 311, MS 341, MSE 220, 031, 040, E 15, 064, E 220, E 20, MS 661, MS 260, MS 270, MS 280, MS 290, MS 310, MS 340, MS 360, MS 362, MS 380, MS 391, MS 441, MS 460, MS 650, MS 660
